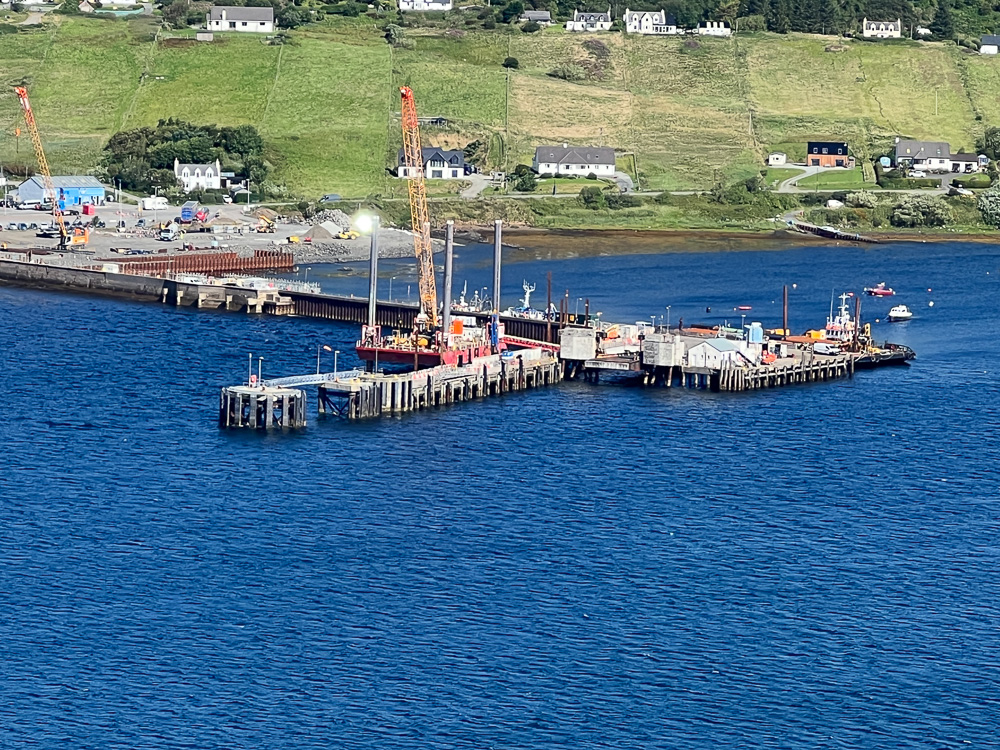

Situated on the north coast of the Isle of Skye, Uig Harbour occupies a strategically important position on the shores of Loch Snizort and serves as the principal ferry gateway to the Outer Hebridean Islands. With a local population of approximately 450, Uig plays a critical role in supporting passenger transport, freight operations, and regional connectivity throughout the year. Due to its significance as a busy marine transport hub, the harbour experiences constant operational demand in a challenging coastal environment.
As part of a major infrastructure improvement programme commissioned by Highland Council and delivered by RJ McLeod, essential structural repairs were required to preserve and enhance the harbour’s ageing marine assets. CRL was subcontracted to undertake specialist concrete repairs to the main approachway and pier head structures, addressing deterioration to beams, columns, and soffits caused by prolonged marine exposure, tidal loading, and operational wear.
Scope of Work
- Concrete repairs
- Hydro demolition
- Temporary works scaffolding
- Marine environment
- Spray Concrete
- Replacement reinforcement
- Coatings
- Column encasements

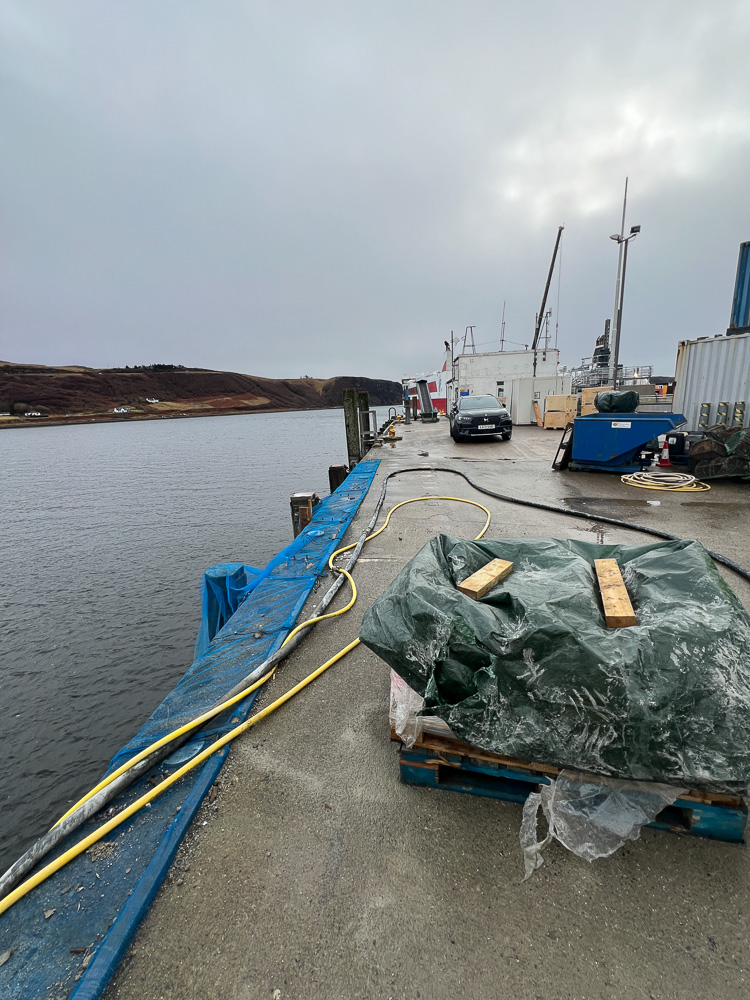

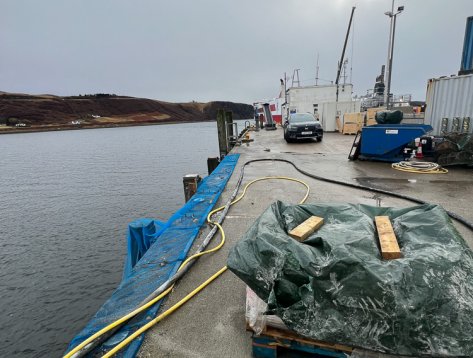

Working within a live operational ferry terminal presented significant engineering and logistical challenges, requiring careful planning, flexible programming, and robust safety management. CRL was subcontracted by RJ McLeod to deliver specialist repairs to the harbour’s main approachway and pier head, while maintaining operational continuity in an active marine environment where public access remained in place for ferry embarkation and disembarkation. Simultaneously, principal contractor activities, including adjacent sheet piling operations, were ongoing, requiring close coordination between work fronts.
Given the tidal nature of the structure, repair activities were heavily influenced by marine conditions and restricted working windows. Shift working was implemented to maximise productivity within tight programme constraints, enabling works to progress efficiently in the intertidal zone while minimising disruption to harbour operations.

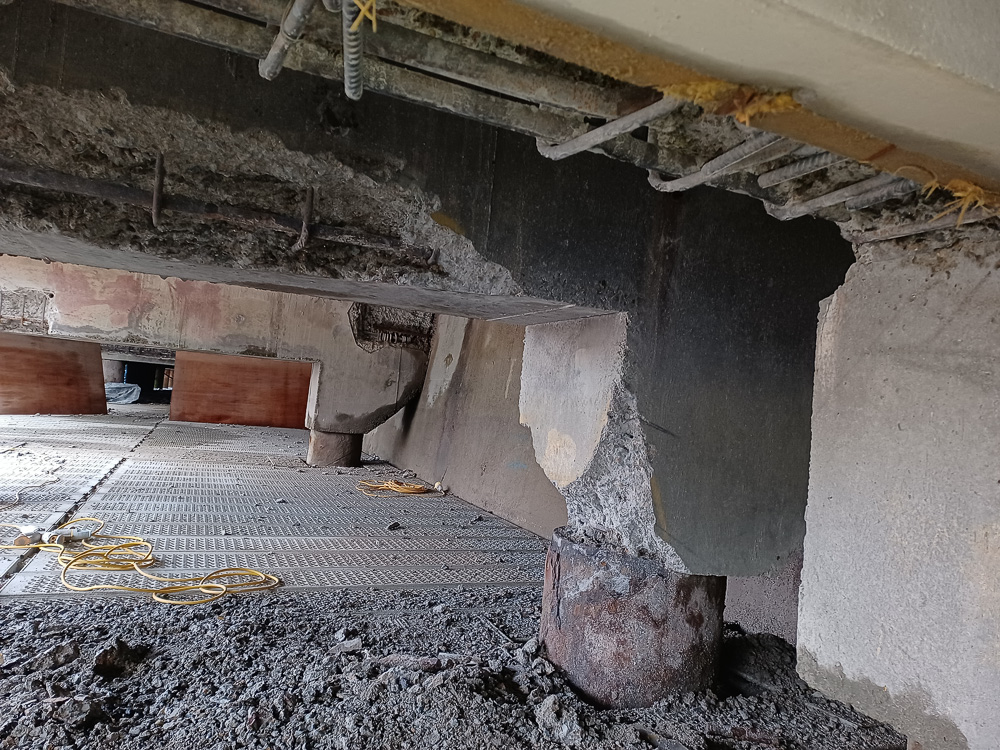

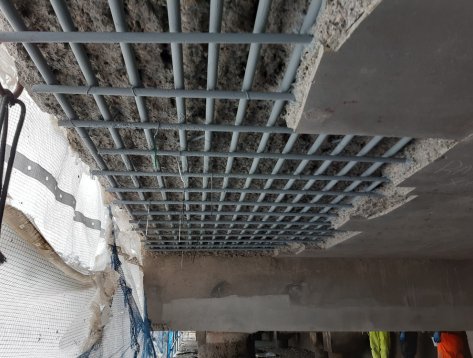

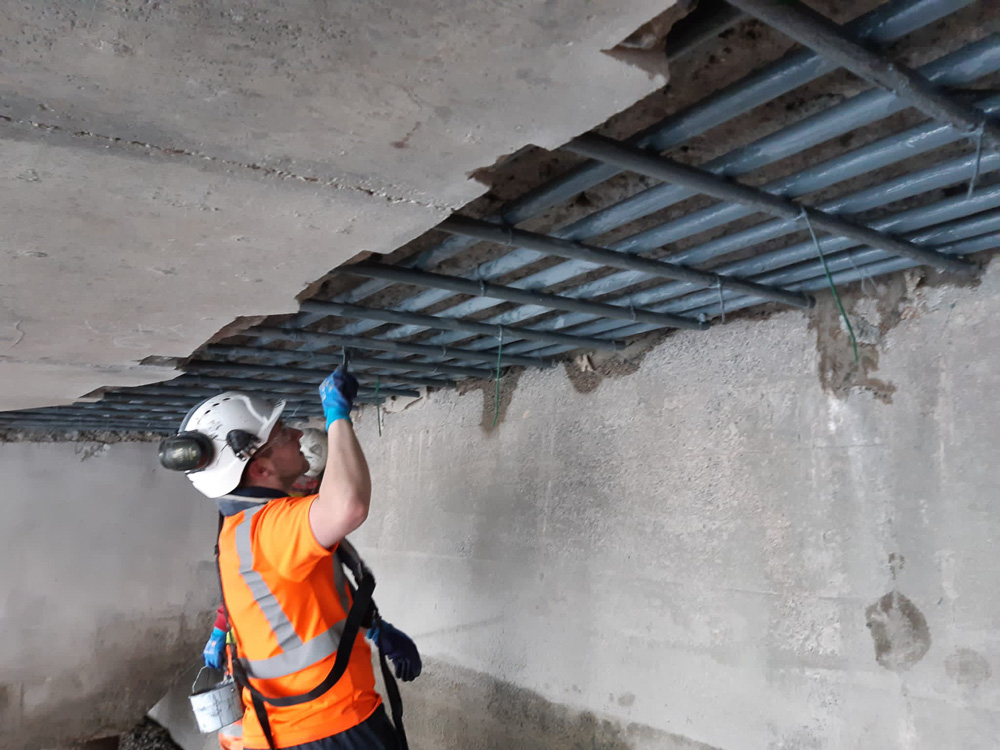

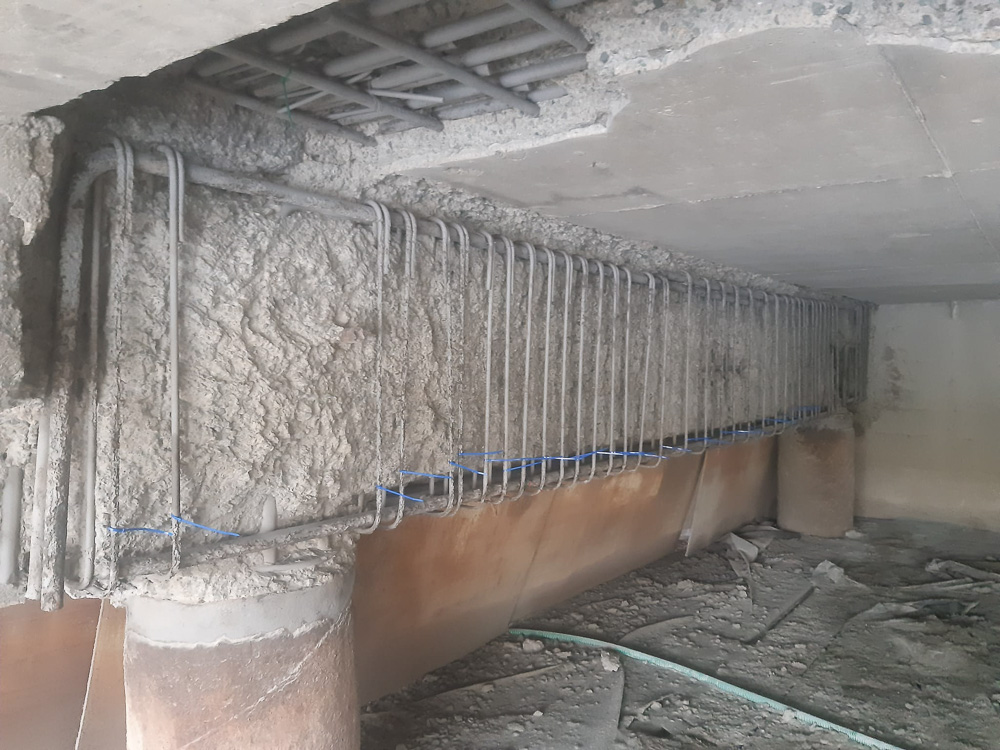

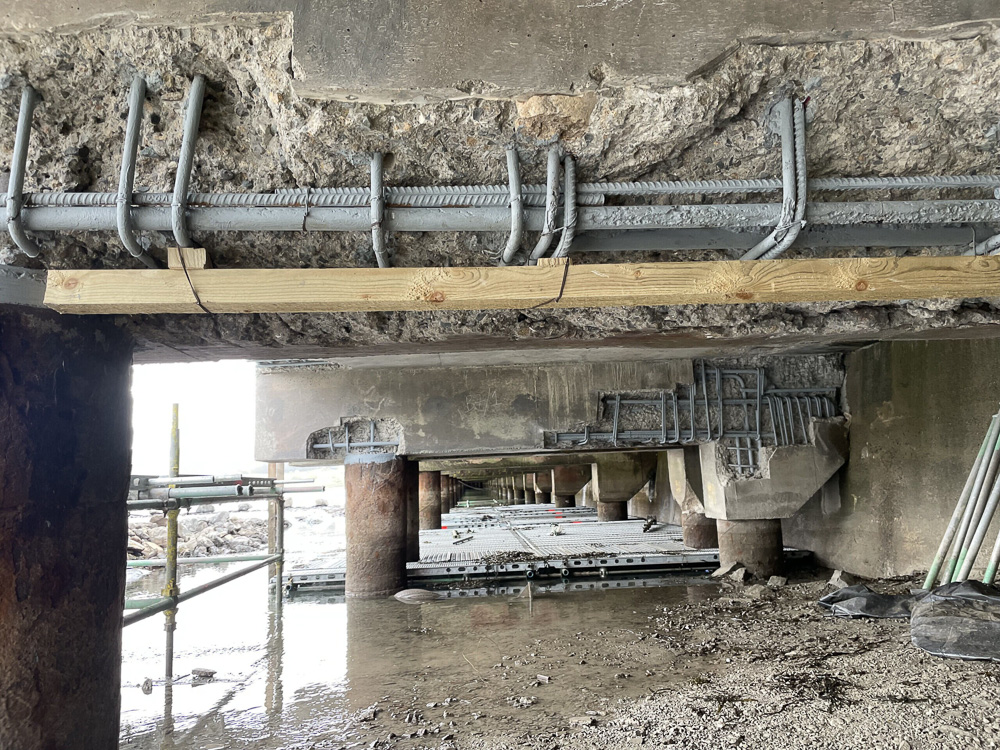

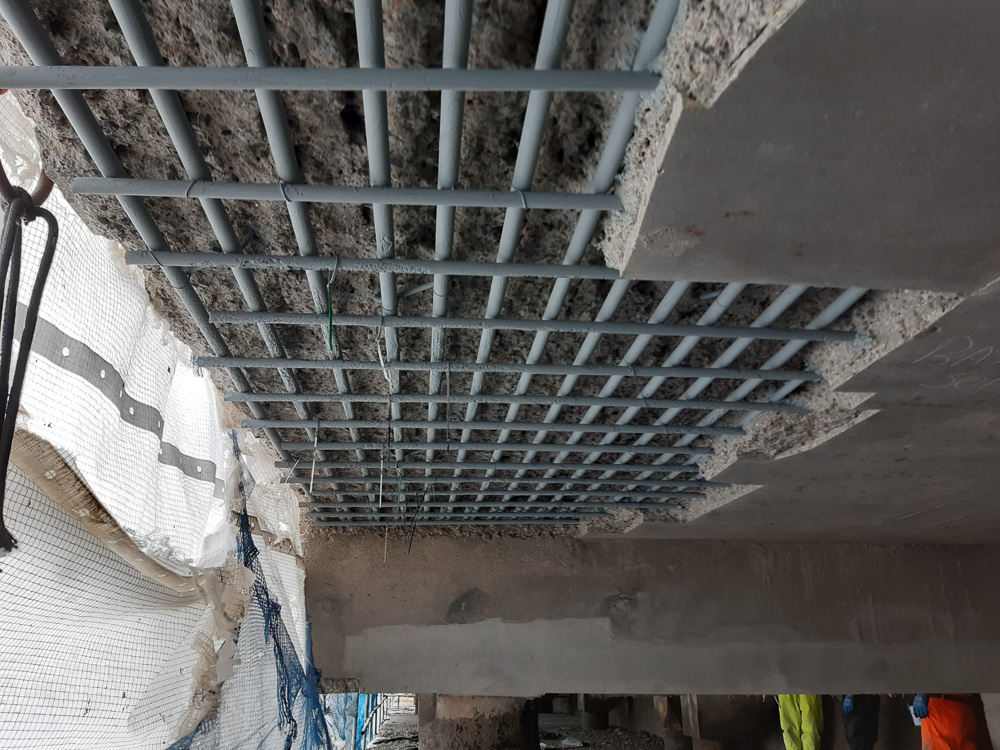

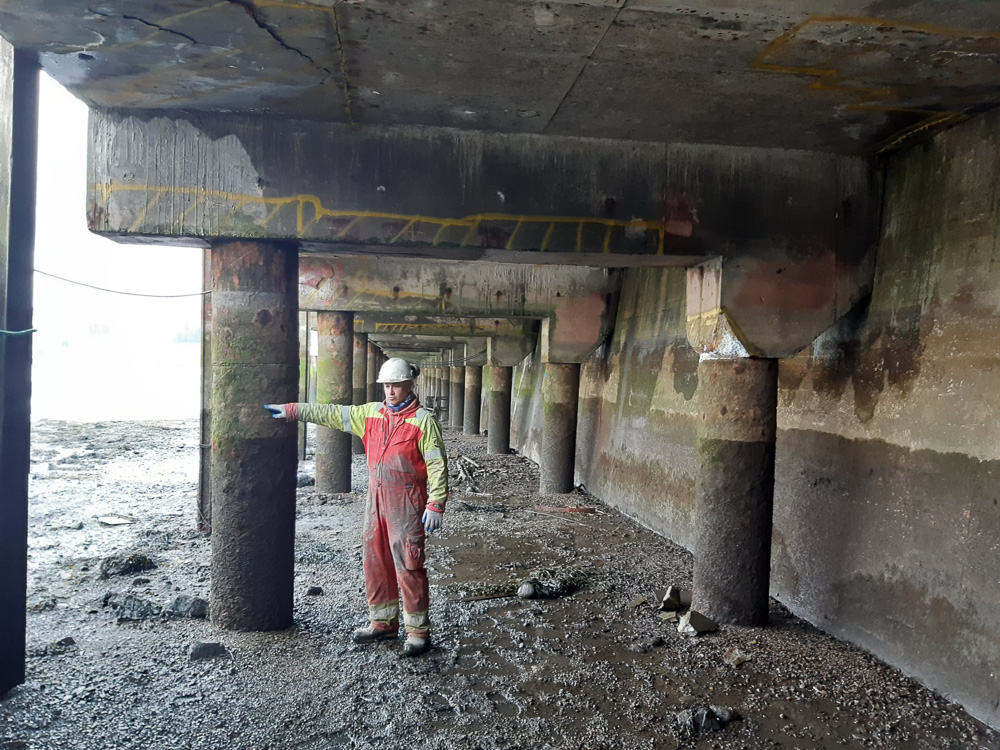

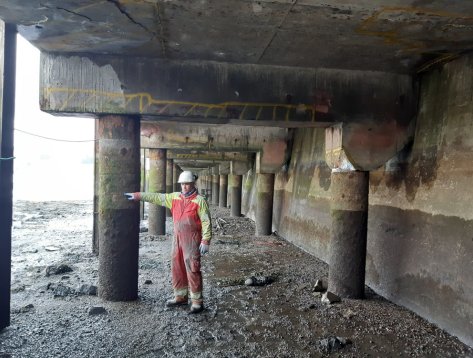

The scope of specialist concrete repairs incorporated hydro demolition techniques to remove deteriorated concrete and expose defective substrates without causing unnecessary damage to retained structural elements. Areas of deterioration affecting reinforced concrete beams, columns, and deck soffits were carefully prepared to facilitate high-quality reinstatement works. Replacement reinforcement was installed where degradation had compromised embedded steel, ensuring structural continuity and restoring asset integrity.

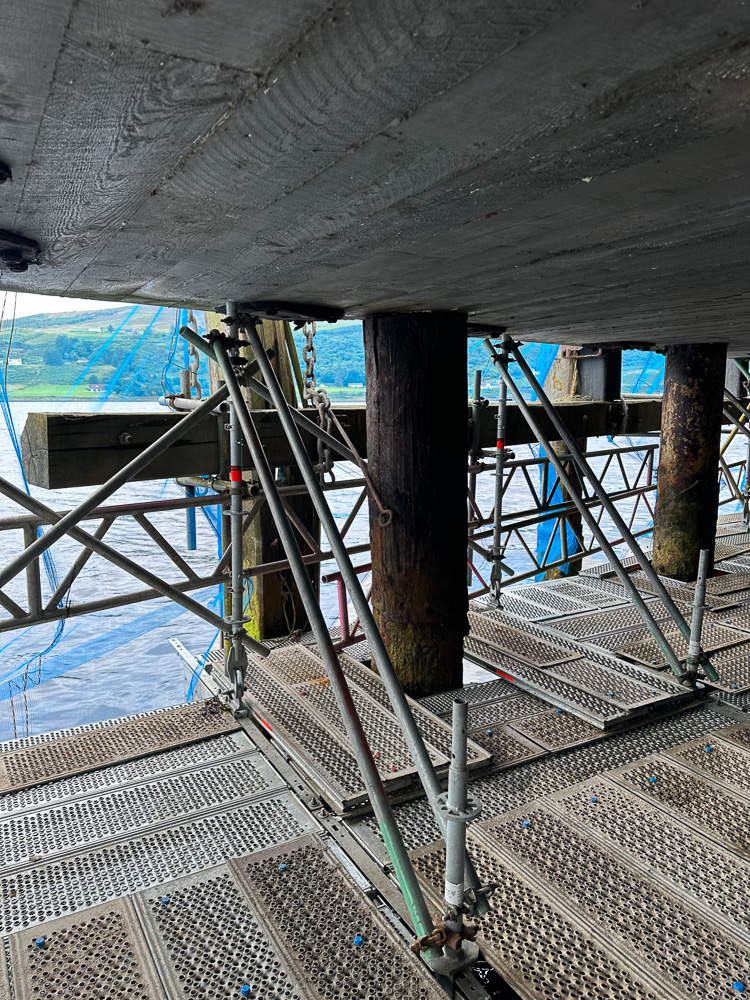

Temporary works scaffolding was designed and installed to provide safe access to difficult-to-reach marine structures, allowing operatives to undertake repairs safely within constrained tidal conditions. Spray concrete techniques were utilised to reinstate repaired areas efficiently and achieve durable structural repair solutions suited to the aggressive coastal environment. Additional column encasements were installed to strengthen vulnerable elements and provide enhanced long-term resilience against marine deterioration.
CRL’s involvement in the Uig Harbour project demonstrates the value of specialist expertise in delivering complex concrete repairs within operational infrastructure environments. By combining technical capability with practical marine experience, CRL helped preserve a critical transport asset through carefully planned structural repairs, contributing to the harbour’s continued functionality and supporting wider asset management objectives. Phase 1 works, valued at just over £1 million, were completed at the end of 2022, with Phase 2 returning in 2023 to complete further pier head repairs as part of a total project value of £3.8 million delivered over a two-year duration.
In a highly aggressive marine environment, long-term durability forms a critical part of any successful repair strategy. At Uig Harbour, structural concrete repairs were undertaken with careful consideration of ongoing exposure to tidal fluctuations, chloride ingress, and accelerated deterioration mechanisms associated with coastal infrastructure. Robust surface preparation methods, including hydro demolition, enabled defective concrete to be removed while retaining sound substrates and preparing surfaces for durable reinstatement.
Replacement reinforcement and specialist repair techniques helped restore structural performance while reducing the risk of further deterioration to key harbour elements. Protective coatings were incorporated to enhance resilience and provide additional defence against moisture penetration and environmental attack, supporting long-term corrosion prevention. Through carefully executed repair methodologies, CRL contributed to extending the operational service life of this essential marine asset, reducing future maintenance demands and helping safeguard a critical transport connection for years to come.
