The Abbey Quarter in central Reading contains some of the town’s most significant historic assets, including the Abbey Ruins and the Abbey Gateway, both of which are of national and local importance. Founded in 1121 by King Henry I and dissolved in 1539 under Henry VIII, Reading Abbey played a central role in the town’s medieval history.
Over time, exposure and deterioration left the standing remains and Gatehouse in poor condition. Following a detailed condition survey and successful Heritage Lottery Fund bid, Reading Borough Council advanced the Reading Abbey Revealed project to restore, conserve, and reopen the site, transforming it into a publicly accessible cultural and heritage destination.
Services undertaken
- Detailed condition surveys following scaffold erection
- Conservation and consolidation of historic flint and rubble walls
- Repairs to twentieth-century hard cappings
- Installation of soft cappings using locally sourced turf and sedum
- Consolidation of loose mortar rubble surfaces
- Spot-patching of historically significant mortar
- Re-pointing of flint and rubble masonry
- Re-bedding of loose stones
- Construction of sacrificial facings
- Partial arch reinstatements
- Use of traditional hot-mixed lime mortars
- Lime shelter coating to significant stonework
- Installation of interpretation panels and ground plaques
- Construction of viewing mound and ground-level features
CRL Restoration was appointed in February 2017 to deliver the consolidation, repair, and conservation of the Abbey Ruins, alongside restoration and new works to the Abbey Gateway. The works were undertaken in three carefully sequenced phases covering the south transept and chapels, the chapter house area, and finally the dormitory and reredorter. Following scaffold erection, CRL carried out detailed condition surveys to assess wall stability, remove loose stone and flint, and agree appropriate repair strategies with the conservation architects and Historic England.

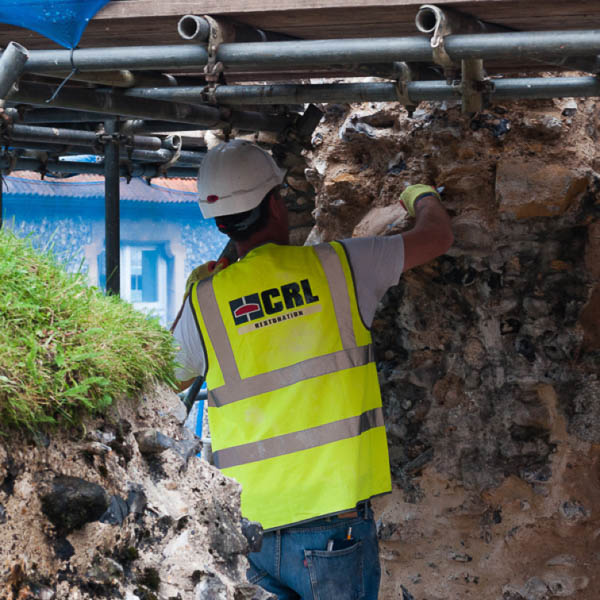

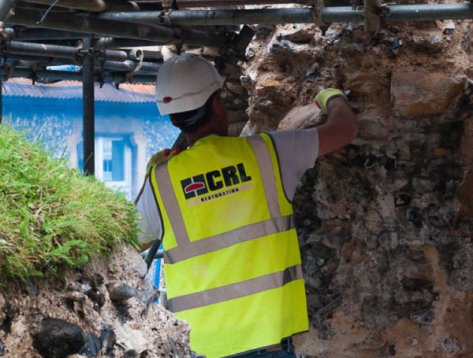

Repairs focused on preserving the authenticity of the ruins while addressing long-standing structural vulnerabilities. Twentieth-century hard cappings were repaired or replaced, with soft cappings introduced to protect wall cores from water ingress. Loose mortar rubble surfaces were consolidated, damaged historic mortar was spot-patched, and flint and rubble walls were re-pointed. Fallen stones, retained on site over many years, were re-used to rebuild eroded sections, improving stability and water run-off. Where required, sacrificial facings were constructed and partial arches reinstated to support weakened masonry.

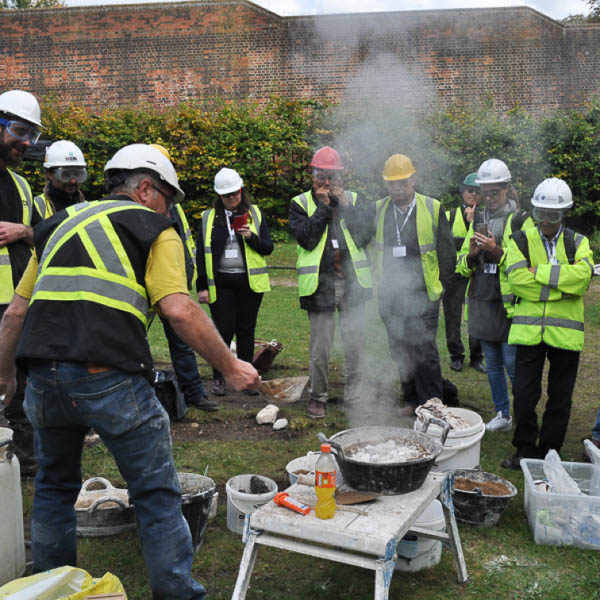

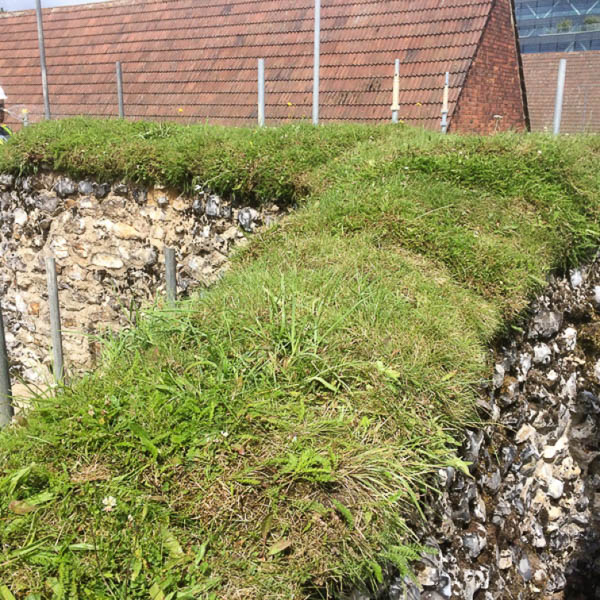

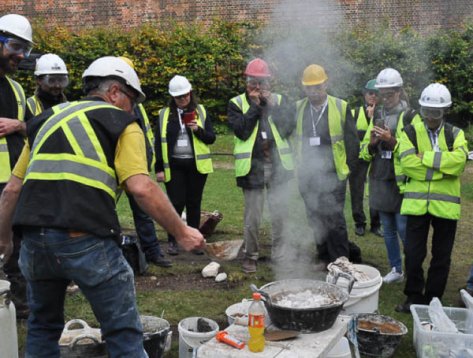

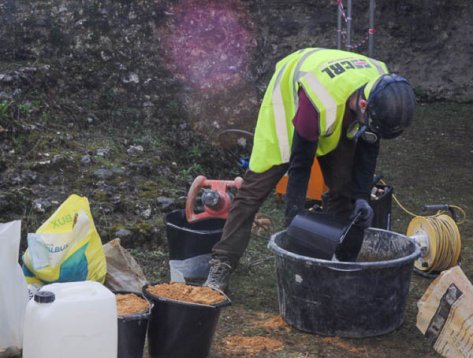

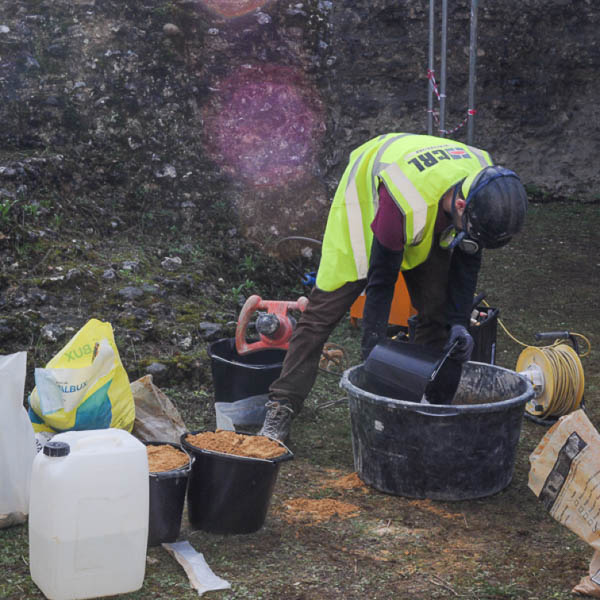

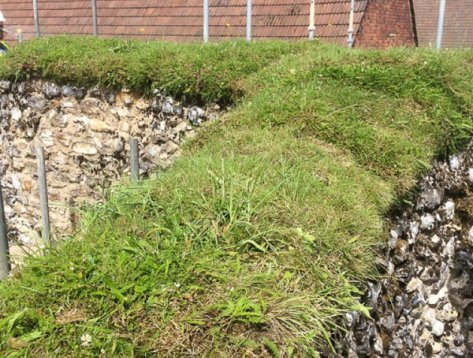

A significant technical decision was taken collaboratively to replace the originally specified NHL mortar with traditional hot-mixed lime mortars. This historically authentic technique, likely used during the Abbey’s original construction, allowed sensitive consolidation works that could not have been achieved with modern alternatives. Soft capping using locally sourced turf and sedum plugs was installed to insulate wall tops, reduce freeze-thaw damage, and significantly improve durability. Interpretation enhancements, including cut flint ground strips, steel edgings, plaques, and a viewing mound, were also delivered to support public engagement with the site.
“It has been an honour and a privilege to work on this iconic building with such a passionate and dedicated team from Reading Borough Council, the Heritage Lottery Fund and the conservation architects from Hertfordshire County Council. The collaborative approach on this project from all parties has been amazing, enabling us to deliver a first class project on time, within budget and to the clients satisfaction."
Kevin Jones | Senior Conservation Manager | CRL Restoration
Beyond the physical conservation works, the project delivered long-term protection and resilience to one of Reading’s most important heritage assets. CRL’s collaborative approach with Reading Borough Council, Historic England, and the conservation architects ensured that every intervention balanced durability with historical integrity.
The use of traditional hot-mixed lime mortars and soft capping systems has significantly reduced future maintenance requirements by addressing water ingress and environmental exposure at source. Careful planning and phased delivery safeguarded structural stability throughout the works while enabling the Abbey Quarter’s transformation into a sustainable cultural destination.
This project demonstrates CRL’s ability to combine specialist conservation expertise with modern asset management principles, extending service life and securing the Abbey Ruins for future generations.
